MISSION CRITICAL

MIL-SPEC Rackmount KVM Consoles / Workstations

Data Sheet

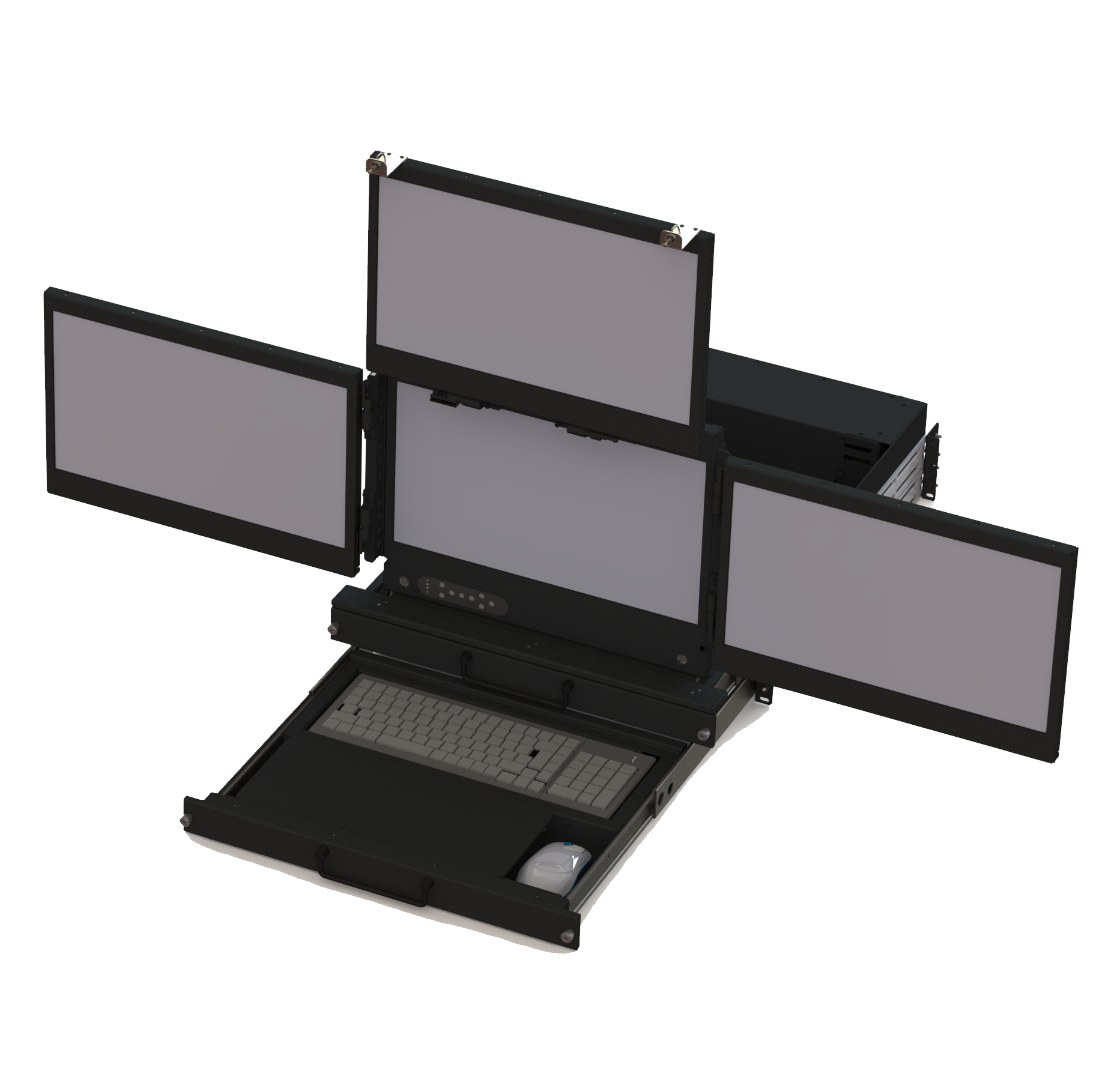

SPARTAN Rackmount Workstations

(RD4U) Rackmount Workstations 4 rack unit tall, 24" rack depth rugged aluminum console with integrated CPU compartment, lay-flat design. Built to meet MIL-STD 810F/G Standard. Up to four 17.3" LED backlit LCD displays. keyboard options with 2 or 3 button glide pad or full-size keyboard and mouse. Integrated KVM switch DisplayPort (4 Ports) Available via Multistream (DP-MST) transport hub. Standard video inputs include HDMI / DisplayPort / VGA. Locking front face (thumbscrew) with folding handle. CAC card reader for additional security.

Integrated CPU Compartment: SPARTAN Rackmount Workstations include a standard size integrated CPU compartment in the lower rear of the console. Incorporating a specified CPU or multiple CPU’s are available as a custom configuration (Engineered Solution). Contact DITHD for more information.

Features:

• MIL-STD 810F/G Compliant / RUGGED Construction

• Displays: 17.3" LED Backlit LCD with Anti-Glare, High Bright Available

• KVM Switches: DisplayPort x 4 Ports via (DP-MST) Hub

• PCAP Touch Available

• MIL Grade C300 Solid Bearing Friction Slide Rails

• Thumb Screw Front Face with Collapsible Handle

• Power Usage: Less than 120W | DC 12V Power Input

• Dimensions: 19" W x 5.25" H x 24" D

• Total Weight: 45 lbs.

• Operating Temp. 173W: 0°C to +70°C

HYDRA Rackmount KVM Consoles

Data Sheet

Storm Case Consoles

Data Sheet

Rackmount KVM Consoles

Data Sheet

(760) 599-9225 | www.DITHD.com | Cage Code: 787R6

1357 Rocky Point Drive, Oceanside, CA 92056
